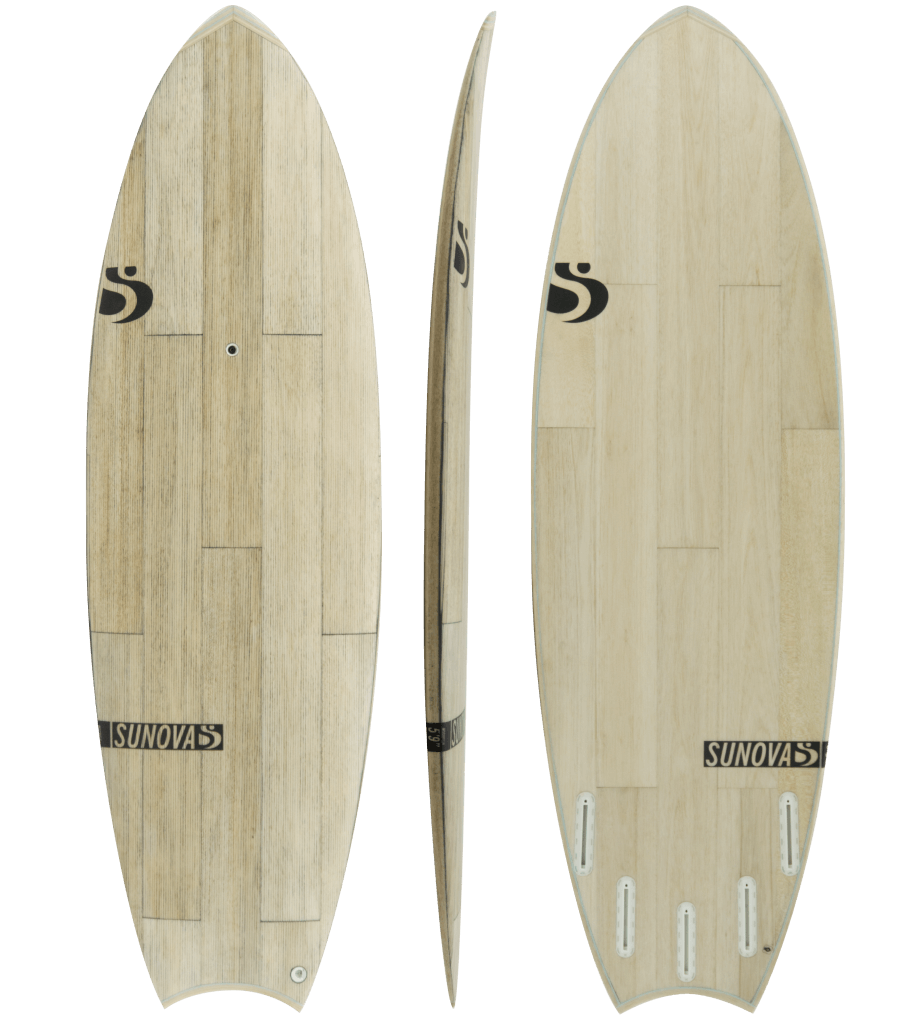

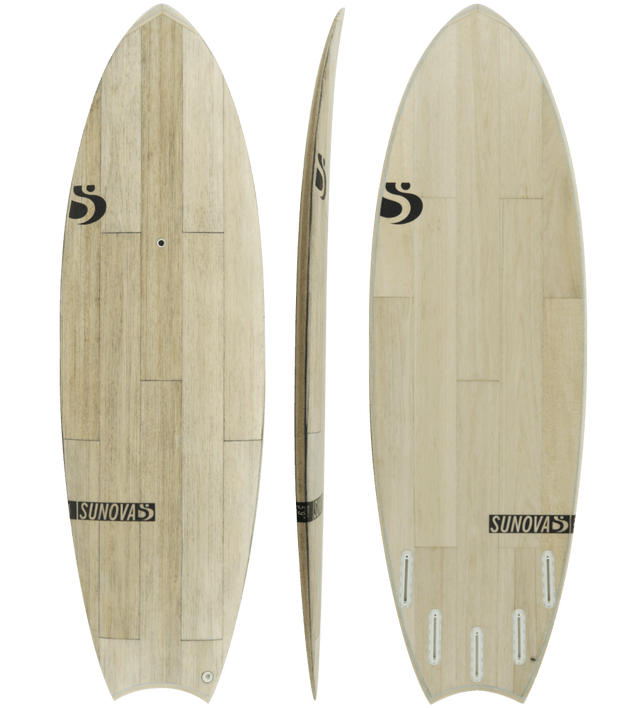

Product Detail Moon Fish 01 Overview@4X preview

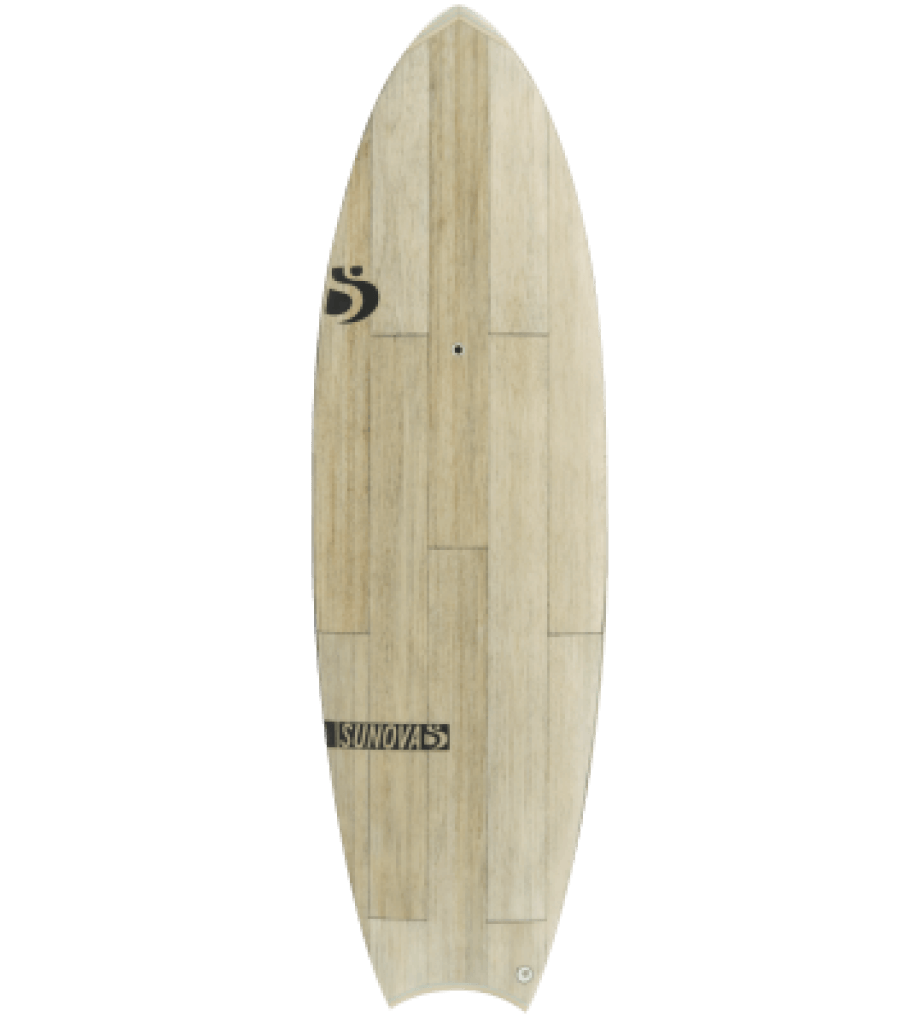

Product Detail Moon Fish 02 Deck@4X preview

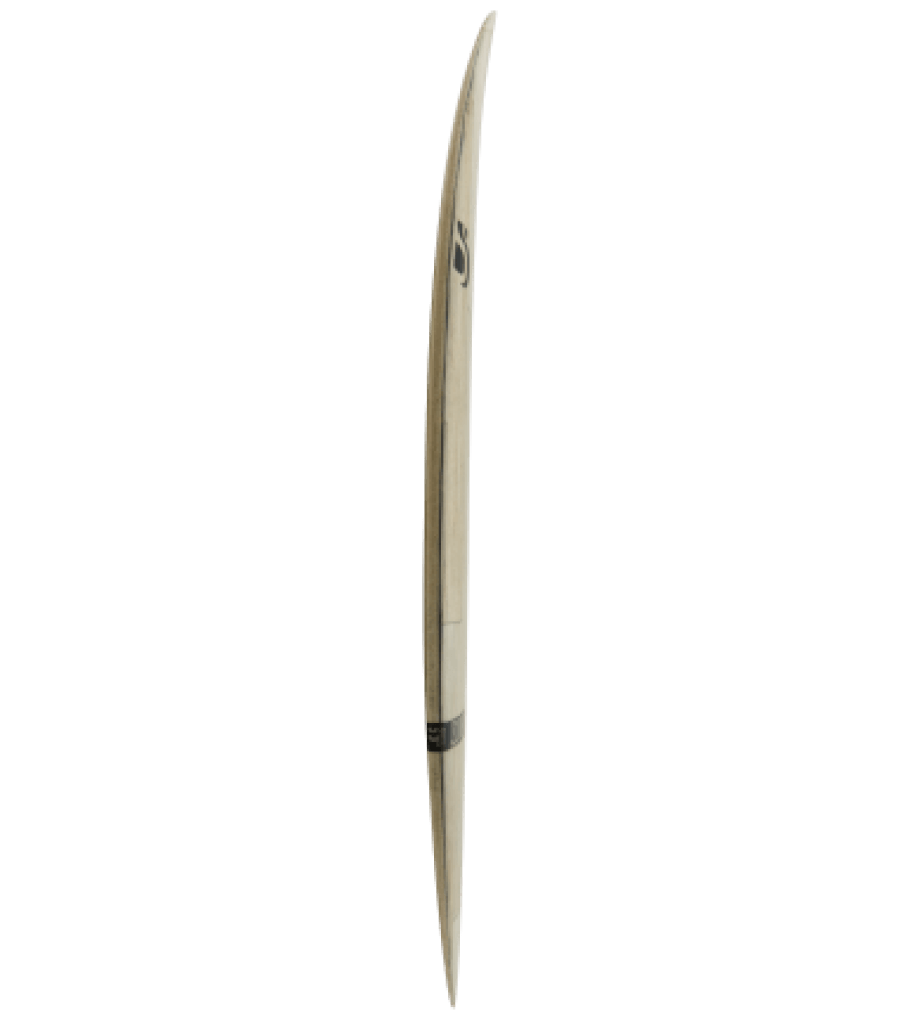

Product Detail Moon Fish 03 Rail@4X preview

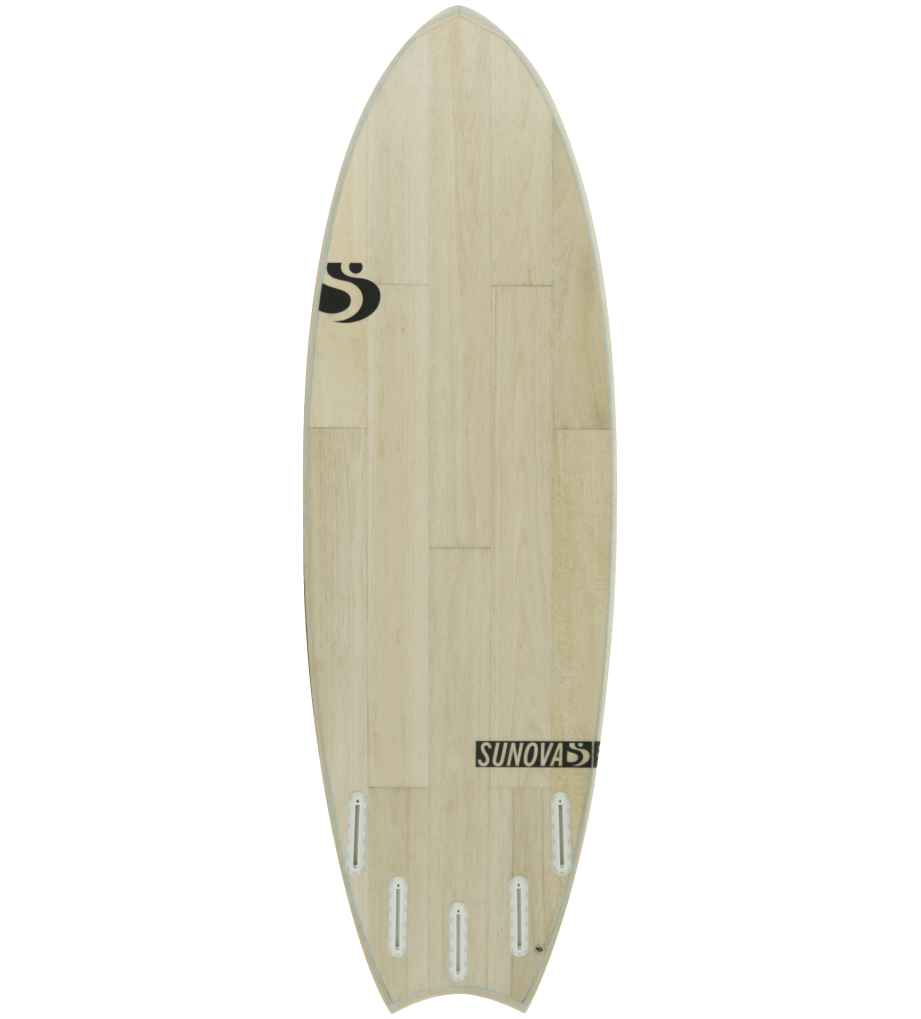

Product Detail Moon Fish 04 Bottom@4X preview

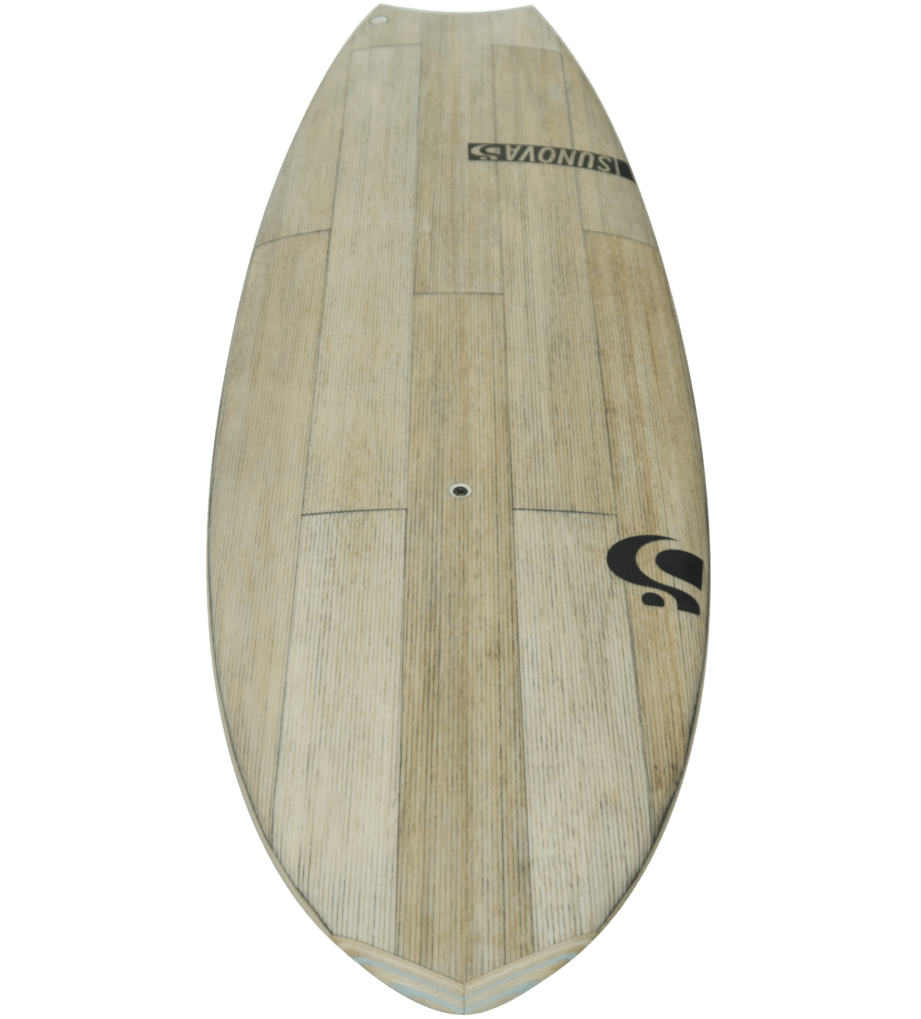

Product Detail Moon Fish 05 Decknose@4X preview

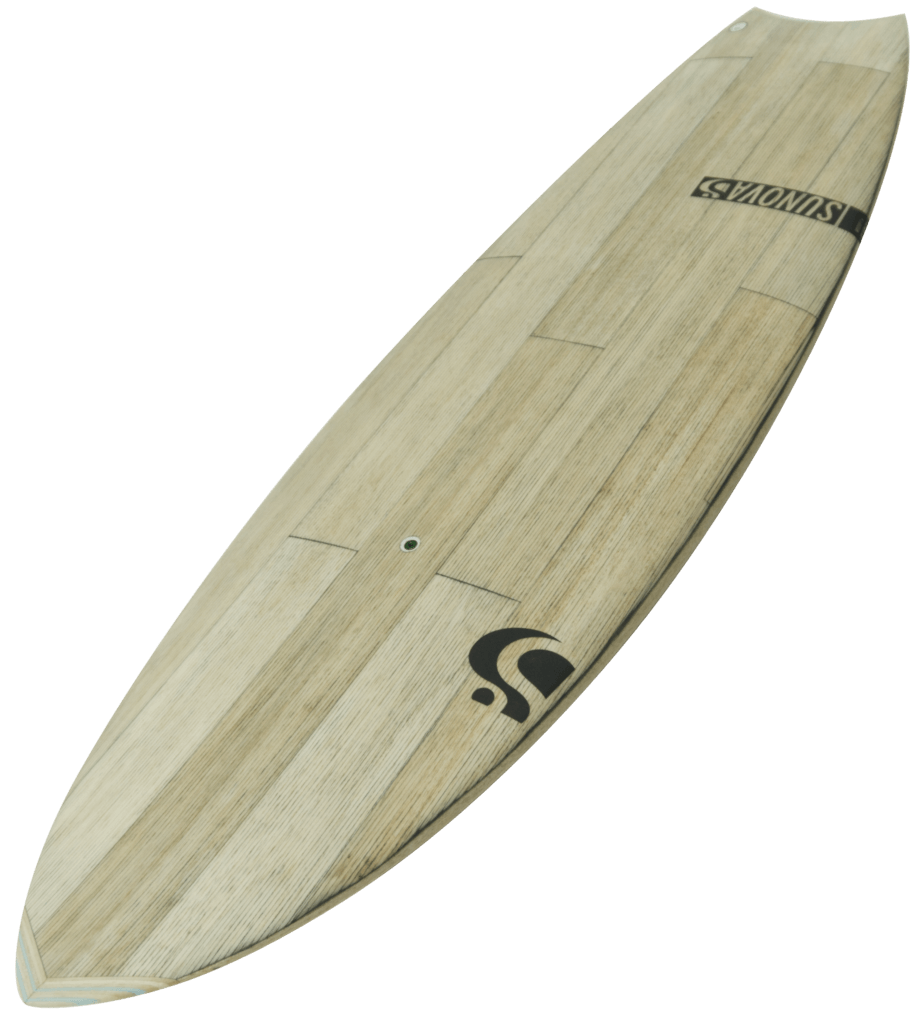

Product Detail Moon Fish 06 Decknose45@4X preview

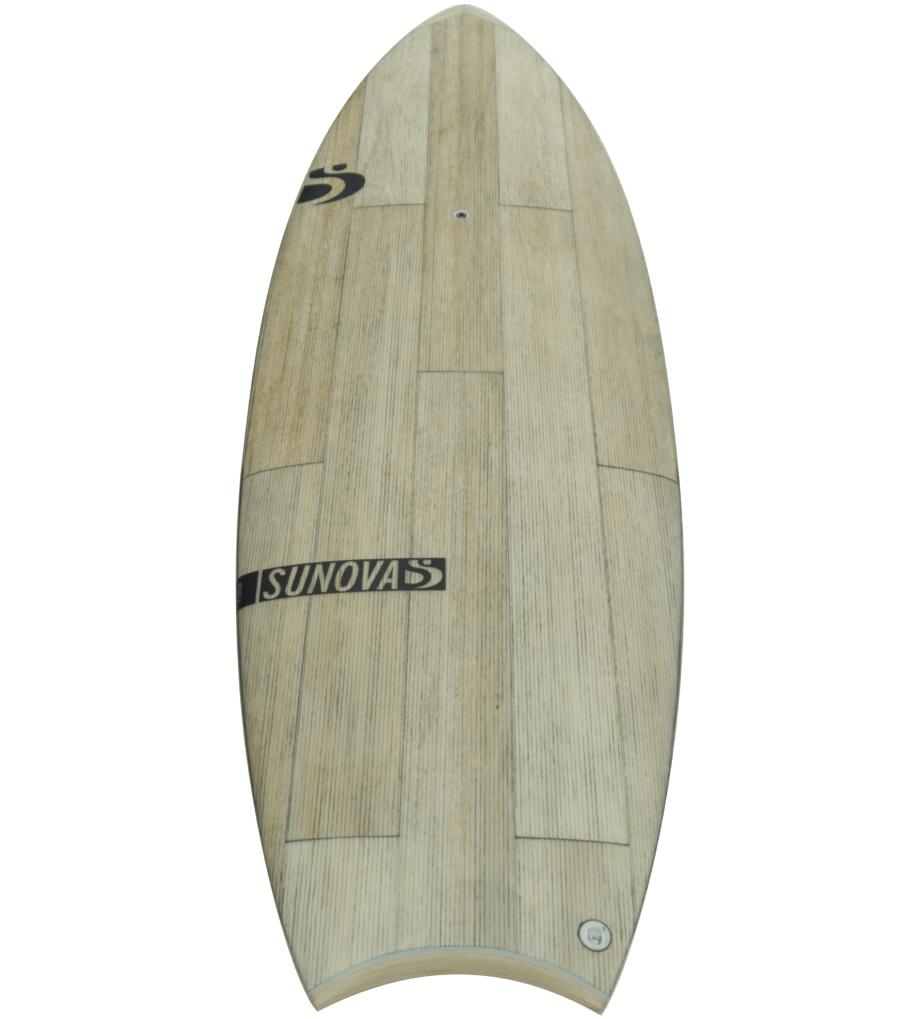

Product Detail Moon Fish 07 Decktail@4X preview

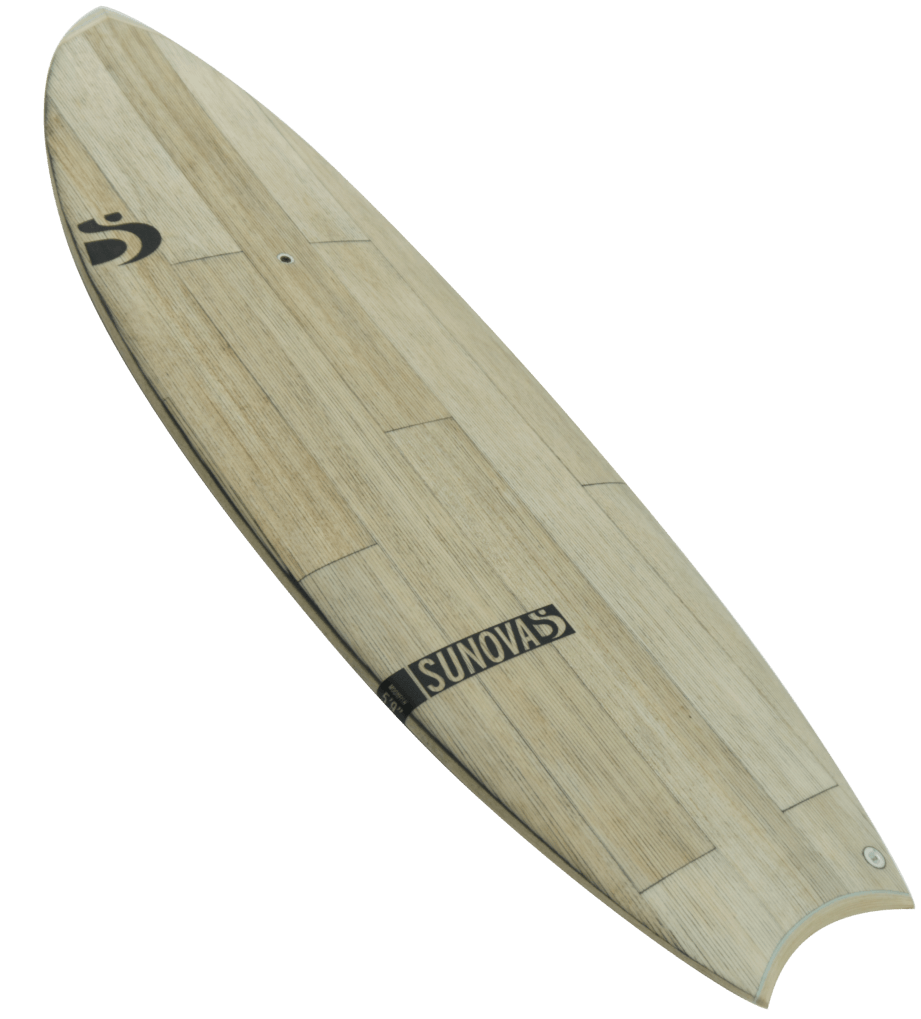

Product Detail Moon Fish 08 Decktail45@4X preview

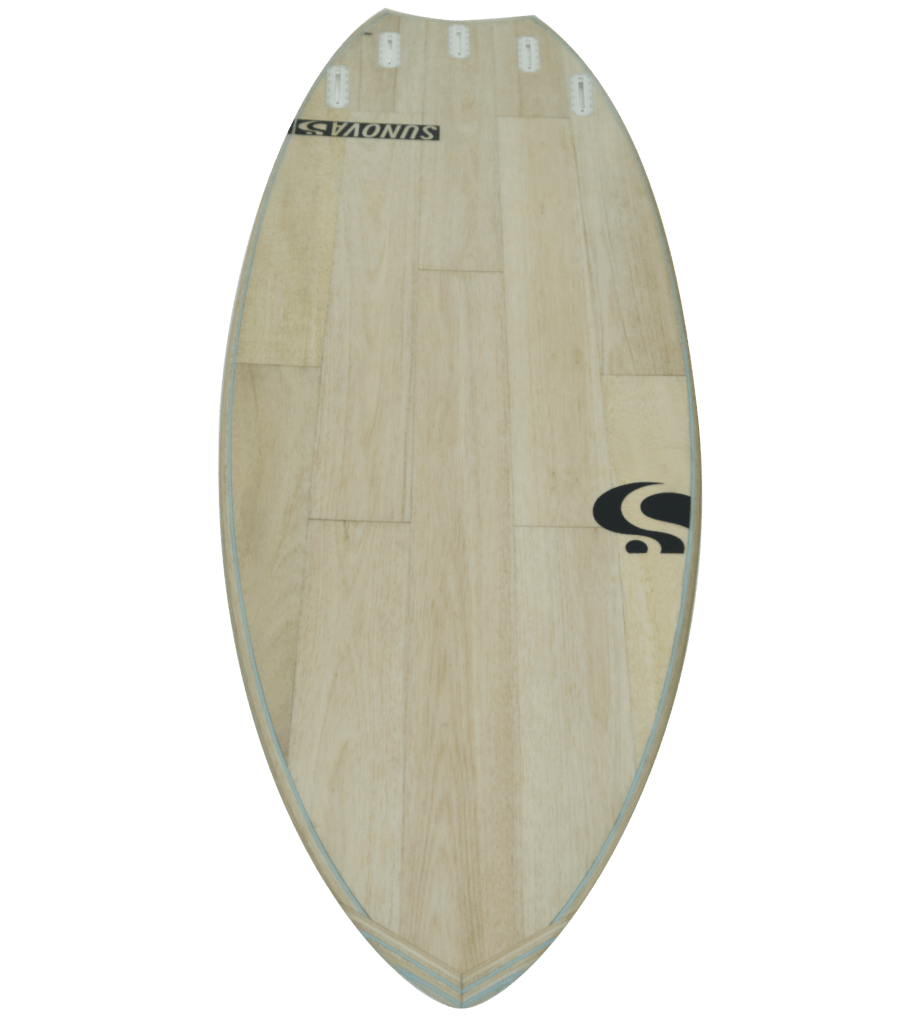

Product Detail Moon Fish 09 Bottomnose@4X preview

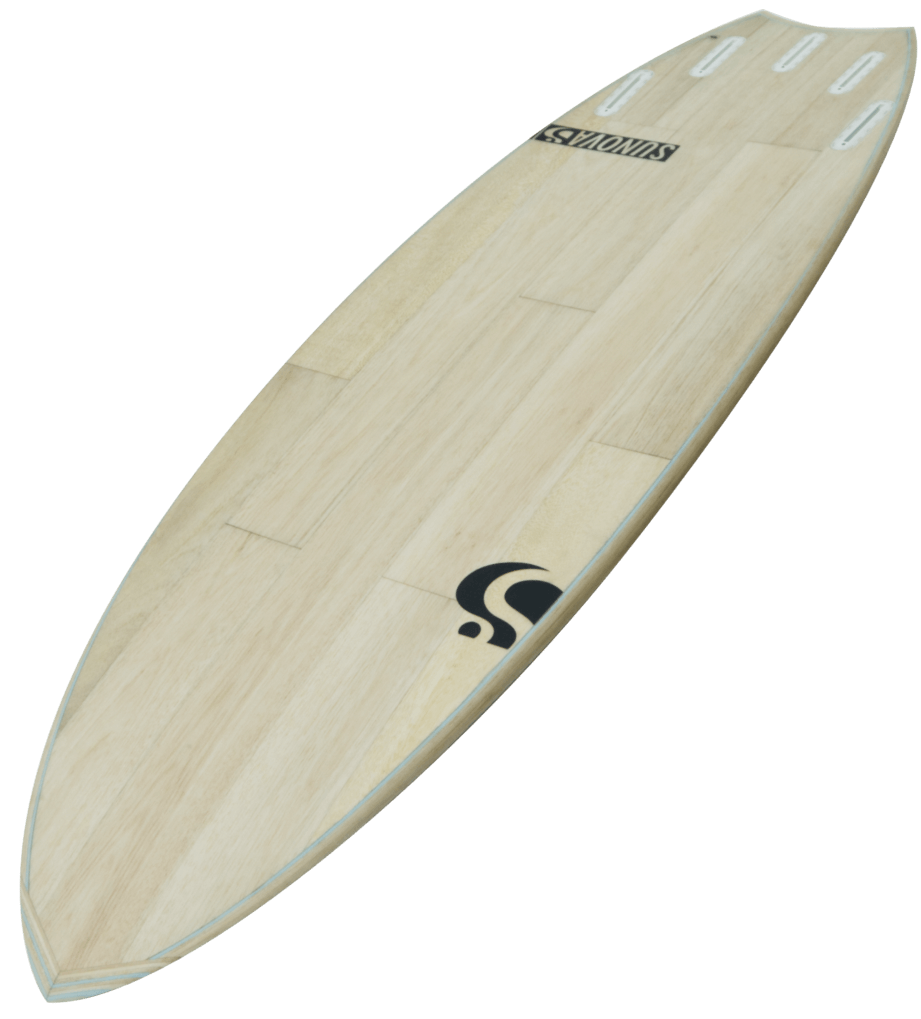

Product Detail Moon Fish 10 Bottomnose45@4X preview

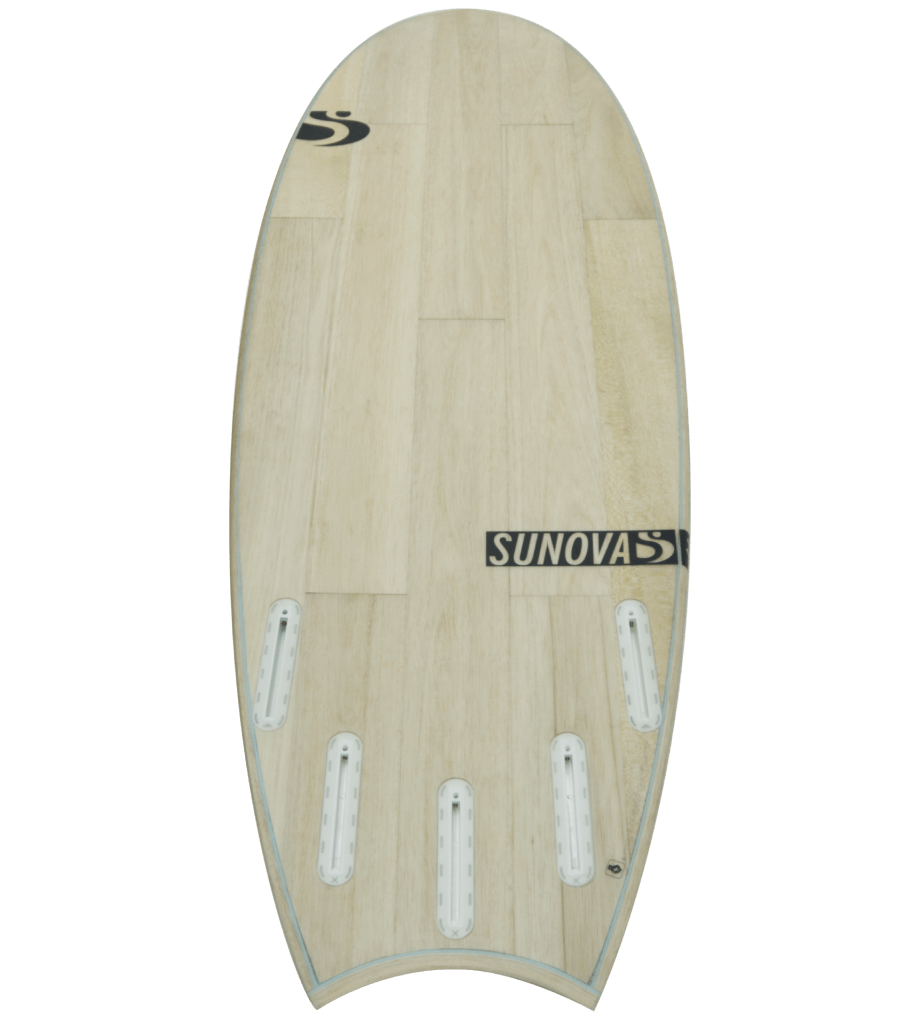

Product Detail Moon Fish 11 Bottomtail@4X preview

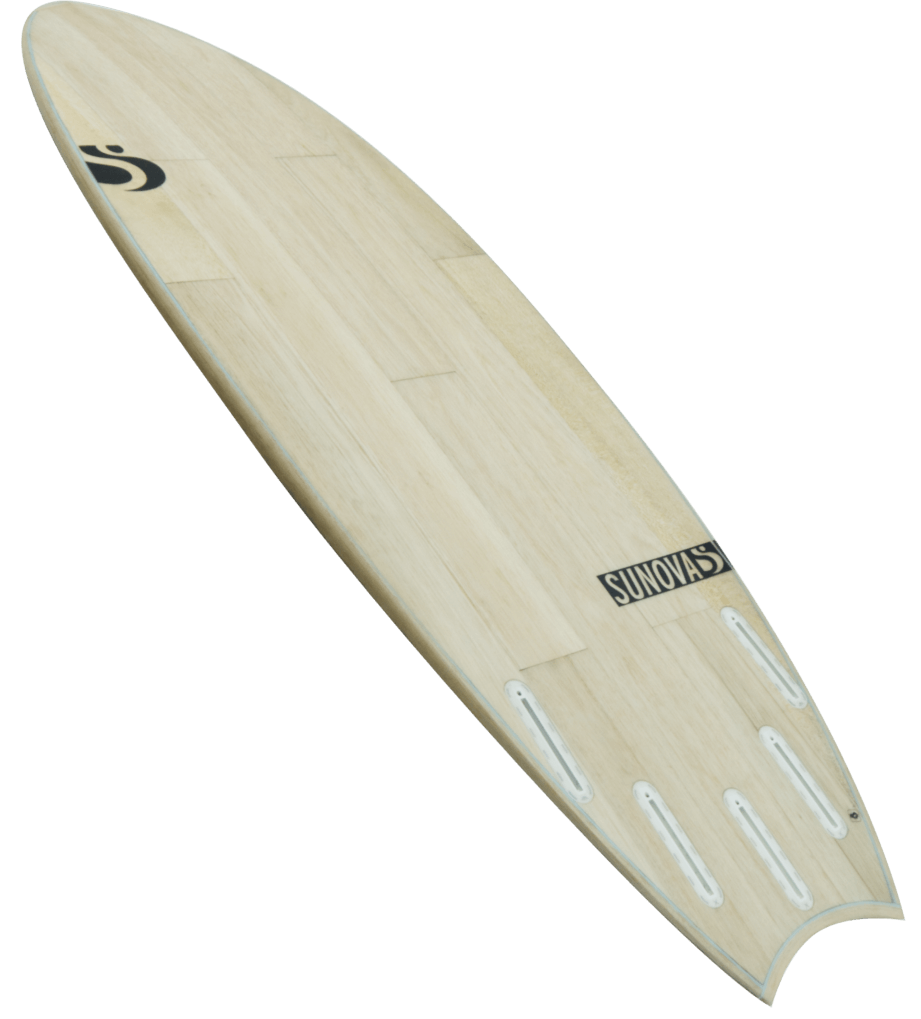

Product Detail Moon Fish 12 Bottomtail45@4X preview

Moonfish

AU$ 1,199.00

Prices include GST, duty and (possibly*) delivery costs

*depends on the exact location
i

THE MOONFISH evolved from the pursuit of performance. A board that carries and catches waves really well but can still slide out the tail and gets super loose. This board is a truly high performance offering and not something for the purists.

If you want to see what a fish can really do, then this is the board for you.

About the board

General goal | theme of the board

A high performance fish for small to medium waves..

Wave type ||| size it's working best

Average quality and softer waves..  ||| From just under waist high up to just over head high.

Manoeuvres it does best

Re-entries, Tail slides…

Skill level it's best for

Novice to Pro..

Paddle power

Well above average

What you thought of when you designed it?

I wanted to create a fish that a high performance short boarder would enjoy, it ended up that it took 5 versions before we finally got there, so now we have a versatile board that can even pass as an everyday shortboard…

What it possibly compromises on then?

The retro Fish purist will probably say it doesn’t have enough glide and that traditional retro feel…

Shape details summary | Design info

Outline

Fuller nose, clean outline into a wide moontail. The Moonfish outline is deceptive, at first glance it has that fuller more parallel look, but in reality, we have taken a high performance shortboard outline and chopped 6 inches off the nose and tail, then blended the nose back in and left the tail as a wide moon. So when you pump down the line and lean it on rail the arc of the turn feels performance, the wide moon offers loads of drive and acceleration, all that area just powers off nothing when you’re on the back foot.

Rails

Slightly fuller, tucked edge into tail. The Rails are slightly fuller, but just pinch down a little dropping the apex closer to the bottom, allowing the rail to bury into a turn easier. The bottom edge up front has a defined bevel, the idea being it’s a small wave board so you want it to skate along on top of the water. The tail rail has a slight tuck, this gives you a little more warning before it pops into a drift. It’s also really fine, so it slices through the water with minimum drag and buries nice and deep, offering hold and control to a board that would otherwise be a little slippery.

Rocker

Medium, slightly flatter. With this rocker the board carries into waves really well, keeps its speed over dead sections and catches waves easily. It has good carry in cutbacks on softer sections and easy to crack into a tail drift.

Bottom

Single concave. One problem with really wide tails and boards is that it's harder to get them on rail. The issue with a wide tail is the slippery feeling on the rail to rail transition. This is where you can go into an uncontrollable drift when turning under the lip at speed. One rail is engaged, then there is a brief moment where the board is flat before you can get the other rail in. With the concave you have one rail engaged, then as you transition onto the other rail, it bights and grabs with a more positive feeling.

Deck

The deck is a fairly standard profile, the tail does fine right out and gets nice and thin. This compensates for the amount of area, so if you throw it into a tight turn, you can still bury the tail into the lip.

Fins

5 Fins. For top to bottom surfing the thruster will be the better option. As the waves get a little steeper and faster, switch out to the quad to hold a higher more direct line, or if the waves are flatter and more open with little chance of top to bottom surfing, the quad is also an option.

Final Statement

A good high performance fish for small to medium waves.

Data Table

Summary of the shape
LENGTH
NOSE WIDTH
WIDTH
TAIL WIDTH
THICKNESS
VOLUME (L)
WEIGHT (KG) TOL +/- 8%
5'4"
15 1/16"
19 5/16"
15 7/8"
2 3/8"
25.8
2.63
5'5"
15 3/16"
19 9/16"
16 1/16"
2 3/8"
27
2.7
5'6"
15 5/16"
19 7/8"
16 1/4"
2 7/16"
28.3
2.78
5'7"
15 7/16"
20 3/16"
16 7/16"
2 7/16"
29.6
2.8
5'8"
15 9/16"
20 1/2"
16 5/8"
2 1/2"
31
2.85
5'9"
15 11/16"
20 13/16"
16 13/16"
2 9/16"
32.3
2.9
5'10"
15 13/16"
21 1/16"
16 15/16"
2 9/16"
33.8
2.96
5'11"
15 15/16"
21 3/8"
14 1/4"
2 5/8"
35.2
2.99
6'0"
16 1/16"
21 11/16"
17 5/16"
2 5/8"
36.7
3.18
6'1"
16 3/16"
22"
17 1/2"
2 11/16"
38.3
3.28
6'2"
16 5/16"
22 5/16"
17 11/16"
2 3/4"
39.9
3.32
6'3"
16 7/16"
22 5/8"
17 13/16"
2 3/4"
41.5
3.38
6'4"
16 9/16"
22 7/8"
18"
2 3/4"
42.7
3.5
6'6"
16 13/16"
23 1/2"
18 3/8"
2 3/4"
45
3.6
LENGTH
NOVICE (KG)
INTER (KG)
ADVANCED (KG)
PRO (KG)
NOVICE (LBS)
INTER (LBS)
ADVANCED (LBS)
PRO (LBS)
5'4"
52
58
63
68
114
127
138
150
5'5"
54
60
65
71
119
132
144
156
5'6"
56
63
68
74
124
138
150
163
5'7"
59
65
71
77
129
143
156
169
5'8"
61
68
74
80
134
149
162
176
5'9"
64
71
77
83
140
155
169
183
5'10"
66
73
80
87
145
162
176
191
5'11"
69
76
83
90
151
168
183
199
6'0"
71
79
86
94
157
175
190
206
6'1"
74
83
90
98
164
182
197
215
6'2"
77
86
93
101
170
189
205
223
6'3"
80
89
97
105
177
196
213
232
6'4"
83
93
101
109
183
204
221
241
6'6"
90
100
109
118
198
220
239
260
LENGTH
FIN SET UP
FRONT FIN
REAR FIN
CENTRE FIN
5'4"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'5"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'6"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'7"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'8"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'9"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'10"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
5'11"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'0"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'1"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'2"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'3"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'4"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
6'6"
FUTURES. (5 FIN)
3D GO HARD 5 FIN
3D GO HARD 5 FIN
3D GO HARD 5 FIN
#
DESCRIPTION
OUTLINE
FULLER NOSE, CLEAN OUTLINE INTO A WIDE MOONTAIL
BOTTOM
SINGLE CONCAVE
ROCKER
MEDIUM, SLIGHTLY FLATTER
RAILS
SLIGHTLY FULLER, TUCKED EDGE INTO TAIL
FINS
5 FIN
GOAL
A HIGH PERFORMANCE FISH
WAVE
WAIST HIGH UP TO JUST OVERHEAD
RIDER
NOVICE TO PRO
